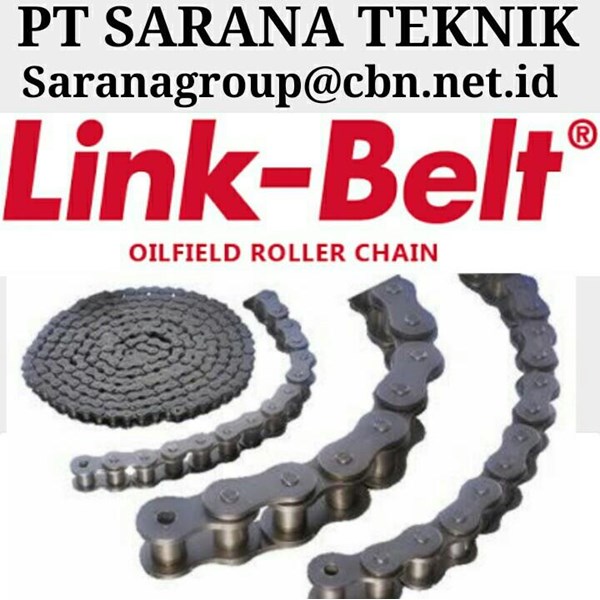

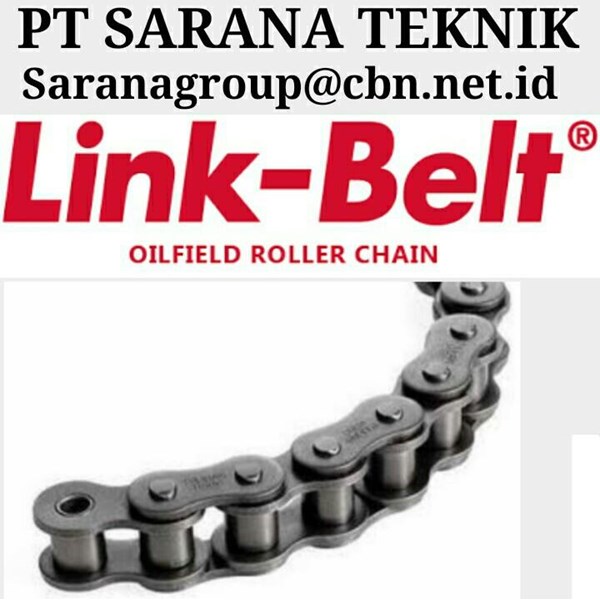

link BELT ROLLER CHAIN FOR OIL FIELD
link-Belt and Rexnord Roller Chains
Shock resistance -
link-Belt
SU and
Rexnord Heavy "H" series roller chain
provides additional capacity to withstand
intermittent shock loading. Features
include improved fatigue resistance,
thicker sidebars, and heat-treated pins.
See page B-4.
Extra clearance -
Trans-Flex
®
chain is
designed for severe duty applications,
such as in transit mixers, crawler drives,
and other uses requiring delivery of
full power despite recurrent sprocket
misalignment. See page B-6.
Drives
Standard roller chain is broadly used in power transmission
applications ranging from general industrial applications to
demanding oil field service to operation in such specialized
areas as food processing and heavy construction
equipment.
Single and multiple standard roller chains, available in
many sizes, meet most drive requirements. Specifications
are shown on pages B-1 through B-3.
Double-pitch drive chains frequently prove the economical
choice for slower speed drives on relatively long centers. For
details, see page B-6.
Modifications of these chains, developed for special
operating conditions, are described below.
Corrosion resistance
—Standard roller chain made
of stainless steel provides excellent performance in
applications requiring high resistance to corrosive attack.
See page B-7.
Standard roller chain/multiple strand
